What the Red Light on GFCI Outlet Means and How to Fix It

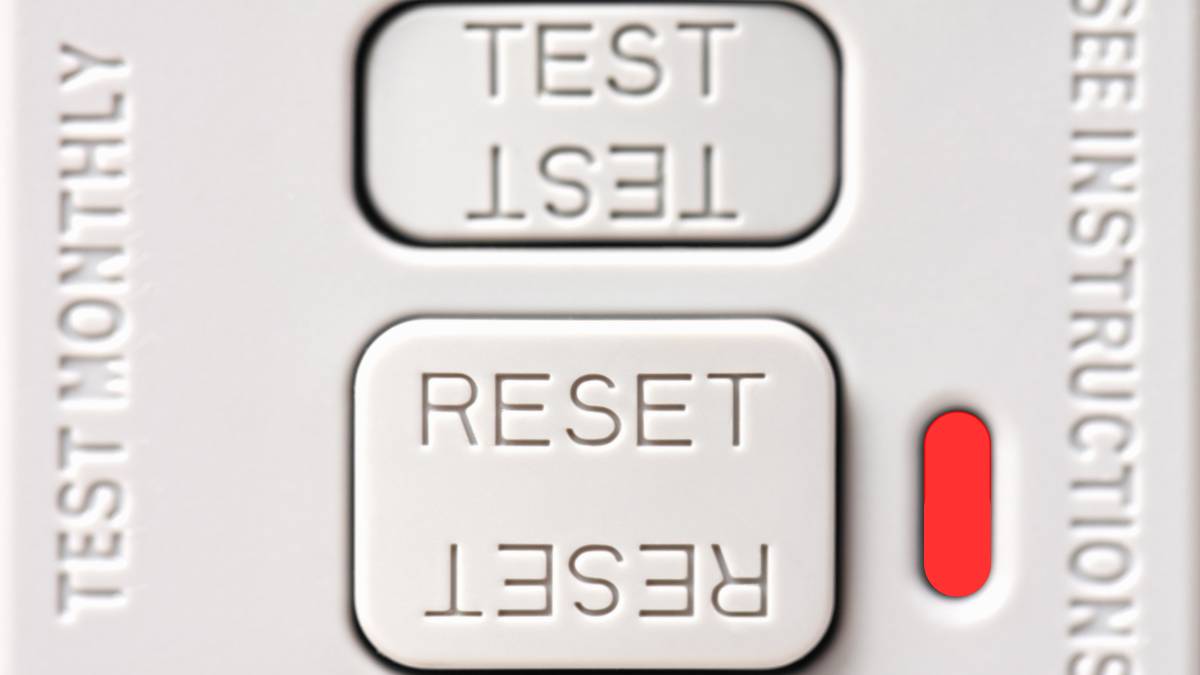

Red Light on GFCI Outlet

Last Updated on June 23, 2024 by Kravelv

Ground Fault Circuit Interrupter (GFCI) outlets are essential safety devices designed to protect you from electrical shock by monitoring the amount of current flowing through the circuit. When there is an imbalance, the GFCI trips and cuts off the power, preventing potential harm. A common feature of GFCI outlets is an indicator light, often red, that serves as a diagnostic tool. This guide delves into what a red light on a GFCI outlet signifies, how to troubleshoot it, and the steps for addressing common issues.

Key Takeaways:

  • The red light signals that the GFCI outlet needs replacement due to reaching its end of life.
  • It indicates the GFCI has tripped due to a ground fault, electrical imbalance, or short circuit.
  • The red light can signify improper wiring or installation problems, such as reversed connections or loose wires.
  • It may also indicate a malfunction within the outlet itself, necessitating replacement.

What Does the Red Light on a GFCI Outlet Mean?

The red light on a GFCI outlet can convey different messages depending on the model and manufacturer. Understanding these signals is crucial for maintaining electrical safety in your home. Here’s a detailed look at what the red light on a GFCI outlet can mean:

1. End-of-Life Indicator

Modern GFCI outlets are equipped with an end-of-life indicator feature. When the GFCI outlet reaches the end of its functional life, the red light will turn on. This feature is designed to ensure that the outlet remains effective in protecting against electrical shocks and hazards.

  • Why It’s Important: Over time, the internal components of a GFCI outlet can degrade, reducing its ability to detect ground faults accurately. The end-of-life indicator alerts you to replace the outlet before it fails to provide protection.
  • What to Do: If the red light is on due to an end-of-life condition, the outlet should be replaced as soon as possible. Delaying replacement could compromise electrical safety.

2. Tripped Outlet

A red light may indicate that the GFCI outlet has tripped. This tripping can occur for several reasons:

  • Ground Fault: This is the most common reason for a GFCI to trip. A ground fault happens when electricity takes an unintended path to the ground. This can occur when electrical components or wiring come into contact with water or are otherwise damaged.
  • Electrical Imbalance: GFCI outlets monitor the flow of electricity between the hot and neutral wires. If there is an imbalance, such as when electricity is leaking through an unintended path, the outlet will trip to prevent shock.
  • Short Circuit: A short circuit occurs when a hot wire touches another hot wire or neutral wire. This can cause a sudden surge in electricity, triggering the GFCI to trip.
  • What to Do: Identify the cause of the trip. Unplug all devices and reset the outlet. If the outlet trips again immediately, it may indicate a more serious issue that requires professional attention.

3. Wiring or Installation Issues

Improper wiring or installation can also cause the red light to turn on. Common issues include:

  • Reversed Line and Load Connections: GFCI outlets have specific terminals for incoming (line) and outgoing (load) wires. If these are reversed, the outlet may not function correctly, and the red light will illuminate as a warning.
  • Loose or Damaged Wires: Loose connections can prevent the GFCI from functioning correctly. Damaged wires can also cause intermittent issues that trigger the red light.
  • What to Do: Turn off the power at the circuit breaker and inspect the wiring. Ensure all connections are secure and correctly positioned. If unsure, consult a qualified electrician to verify the installation.

4. Faulty GFCI Outlet

Sometimes, the red light may indicate a malfunction within the GFCI outlet itself. Over time, the internal mechanisms can wear out or become damaged, affecting the outlet’s performance.

  • Signs of a Faulty Outlet: Difficulty in resetting the outlet, inconsistent performance, or the red light staying on even after attempting resets could all be indicators of a faulty GFCI outlet.
  • What to Do: If you suspect the outlet is faulty, it is best to replace it. Turn off the power at the circuit breaker before removing and replacing the outlet with a new one. Always ensure the replacement is done correctly to maintain safety.

Related Articles:

Diagnosing the Red Light on Your GFCI Outlet

Identify the Cause

To determine why the red light is on, follow these steps:

  1. Check for Power: Ensure there is power reaching the outlet. If other outlets or lights on the same circuit are not working, the problem might lie with the circuit breaker or a blown fuse.
  2. Press the Reset Button: GFCI outlets have a reset button. Press it to see if the light turns green or if the outlet begins functioning normally. If it resets, the problem might have been a temporary imbalance.
  3. Test the Outlet: Use the test button on the outlet to check if it is functioning properly. Pressing the test button should trip the outlet, turning off the power. Press the reset button again to restore power. If the outlet does not trip or reset correctly, it may be faulty.

Inspect the Wiring

If the outlet does not reset or the red light remains on, inspect the wiring:

  1. Turn Off the Power: Before inspecting the wiring, turn off the power at the circuit breaker to avoid electrical shock.
  2. Remove the Outlet Cover: Unscrew and remove the cover plate to access the wiring.
  3. Check the Connections: Ensure that the line and load wires are connected correctly. The line wires (incoming power) should be connected to the line terminals, and the load wires (outgoing to other outlets) should be connected to the load terminals.
  4. Look for Loose Wires: Tighten any loose connections and ensure there are no damaged wires.

Troubleshooting Common Issues

1. End-of-Life Condition

If the red light indicates an end-of-life condition:

  1. Purchase a New GFCI Outlet: Buy a replacement GFCI outlet from a reputable hardware store.
  2. Turn Off the Power: Ensure the power is off at the circuit breaker.
  3. Replace the Outlet: Remove the old outlet and install the new one, ensuring correct wiring connections.
  4. Test the New Outlet: After installation, test the new outlet to ensure it is functioning properly.

2. Tripped Outlet

If the red light indicates the outlet has tripped:

  1. Identify the Cause: Determine if there is a specific appliance or condition causing the trip.
  2. Press the Reset Button: Reset the outlet by pressing the reset button. If it trips again, unplug connected devices and reset again.
  3. Check for Ground Faults: Inspect connected devices and the wiring for ground faults or short circuits.

3. Wiring or Installation Issues

If improper wiring is suspected:

  1. Recheck Connections: Ensure all connections are correct and secure.
  2. Use a Voltage Tester: Confirm that the correct voltage is reaching the outlet.

4. Faulty GFCI Outlet

If the red light indicates a faulty GFCI outlet:

  1. Recognize the Signs: Difficulty in resetting the outlet, inconsistent performance, or the red light staying on even after attempting resets can all indicate a faulty outlet.
  2. Purchase a New GFCI Outlet: Acquire a replacement outlet from a reputable source.
  3. Turn Off the Power: Before proceeding with any replacement, turn off the power at the circuit breaker to ensure safety.
  4. Remove the Faulty Outlet: Carefully remove the old outlet, noting the wiring configuration.
  5. Install the New Outlet: Install the new GFCI outlet, ensuring that the line and load wires are correctly connected.
  6. Test the New Installation: Once installed, press the test button to ensure the new outlet is functioning correctly, and then press the reset button to restore power.

Red Light on GFCI Outlet Preventive Measures

To avoid issues with your GFCI outlet:

  1. Regular Testing: Test your GFCI outlets monthly by pressing the test button. This ensures they are functioning correctly.
  2. Proper Installation: Ensure GFCI outlets are installed by a qualified electrician.
  3. Use Correctly Rated Outlets: Ensure that the GFCI outlets used are rated for the specific application; whether it is indoor, outdoor, or for specific appliances, proper rating is crucial.

Red Light on GFCI Outlet FAQs

What should I do if the red light on my GFCI outlet is on?

If the red light on your GFCI outlet is on, it indicates a potential issue that you need to address. First, press the reset button to see if the outlet resets. If it doesn’t reset or the red light remains on, check for any tripped breakers or blown fuses in your electrical panel. Should the problem persists, inspect the wiring for any loose or damaged connections. If you’re unsure about handling electrical components, it’s best to consult a qualified electrician.

Can I use my GFCI outlet if the red light is on?

No, you should not use a GFCI outlet if the red light is on. The red light indicates that the outlet is not functioning properly and may not provide the necessary protection against electrical shocks. It’s important to address the issue indicated by the red light before using the outlet again to ensure your safety.

How often should I test my GFCI outlets?

You should test your GFCI outlets at least once a month. Most GFCI outlets have a test button that allows you to check if they are functioning properly. Pressing the test button should trip the outlet, cutting off the power. Then, you can press the reset button to restore power. Regular testing ensures that your GFCI outlets are working correctly and can protect you from electrical shocks.

What causes a GFCI outlet to trip?

A GFCI outlet can trip due to several reasons, including:

  • Ground Fault: An unintended electrical path between a power source and a grounded surface.
  • Electrical Imbalance: A difference in the current between the hot and neutral wires, indicating a leakage of current.
  • Short Circuit: Contact between two wires, causing a surge in electricity.
  • Overloaded Circuit: Excessive electrical load on the circuit can cause the GFCI to trip.

Identifying and addressing the underlying cause is crucial for preventing frequent trips and ensuring the safe operation of your electrical system.

Final Words

The red light on a GFCI outlet serves as an essential diagnostic tool, indicating various conditions that require attention. Whether it’s an end-of-life alert, a tripped condition, wiring issues, or a faulty outlet, addressing the underlying cause promptly is crucial for maintaining electrical safety. Regular testing and maintenance, along with timely replacement of outdated or faulty outlets, can help ensure that your GFCI outlets continue to protect your home effectively.
